Адаптер HiRO H50224 USB 3.0 to Gigabit Fast Ethernet 10/100/1000 LAN Adaptor Windows 8

HiRO H50224 USB 3.0 to Gigabit Fast Ethernet 10/100/1000 LAN Adaptor Windows 8 7 Vista XP 32 Bit 64 Bit

Description

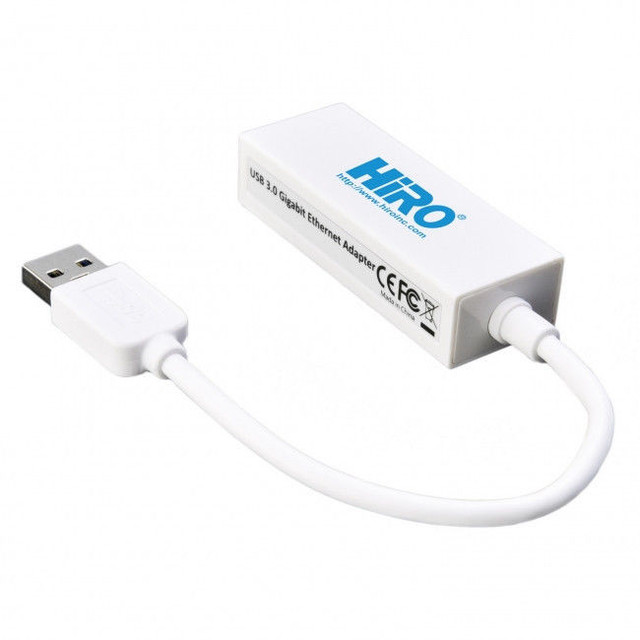

HiRO H50224 USB 3.0 to Gigabit Fast Ethernet 10/100/1000 LAN Adaptor is a high performance and simple plug-and-play Gigabit Ethernet network adaptor for desktops, notebook PC, Ultrabook, docking station, game consoles, digital-home appliances, and any embedded system using a standard USB port.
The HiRO H50224 USB 3.0 to Gigabit Fast Ethernet 10/100/1000 LAN Adapter offers a wide array of features including IPv4/IPv6 checksum offload engine, crossover detection and auto-correction, TCP large send offload and IEEE802.3az EEE (Energy Efficient Ethernet) that allows to enter a low power idle state to reduce power and to achieve a more energy efficient Ethernet. It supports dynamic cable length detection and dynamic power adjustment Green Ethernet in Gigabit mode.

Features and Benefits:
 • Compliant with USB3.0 , USB 2.0 specifications
 • Supports all USB 3.0 power saving modes (U0, U1, U2, and U3)
 • Supports IEEE 802.3az (Energy Efficient Ethernet)
 • IEEE 802.3, 802.3u and 802.3ab compatible
 • Supports dynamic cable length detection and dynamic power adjustment Green Ethernet (Gigabit mode only)
 • Supports IPv4/IPv6 packet Checksum Offload Engine (COE) to reduce CPU loading, including IPv4 IP/TCP/UDP/ICMP/IGMP & IPv6 TCP/UDP/ICMPv6 checksum check & generation
 • Supports full duplex operation with IEEE 802.3x flow control and half duplex operation with back-pressure flow control
 • Supports Jumbo frame

Specification:
Model: H50224

Host Interface: USB 3.0 (and USB 2.0 compliant)

Operating System Support
 • Windows XP, Windows 7, Windows 8
 • Mac OS10.6 and later.

Ports and Connectors
 • Upstream: 1 x Upstream USB 3.0 Port (Type A male Connector)
 • Ethernet: 1 x Ethernet Port (RJ-45 connector)

LED
Link LED (Amber)
 • On: When connection to a 1000Mbps network
 • Off: When connection to a 10/100Mbps network
Status LED (Green)
 • On/Blinking: LAN activity.
 • Off: No network traffic

Power
Power Mode
 • USB Bus -powered
Power Consumption
 • Operating Mode: 420 mA
 • Suspend Mode : 38 mA

Physical Specifications
Housing Material
 • ABS (Plastic)

Dimensions
 • Main body without cable: 84 mm(W) x 23 mm(D) x 15 mm(H)
 • Main body with cable: 97 mm (W) x 23 mm(D) x 15 mm(H)

Weight
 • Approximately 46 g (including cable)

Environmental Specifications
Operating Temperature
 • 10-40°C
Storage Temperature
 • -10~80°C

Package Contents
 • USB 3.0 Gigabit Ethernet Adapter x1
 • Driver CD with User’s Manual x1
 • Quick Installation Guide x1
