Charging connector is XLR connector
Discharging wires are AWG12 silicon wires

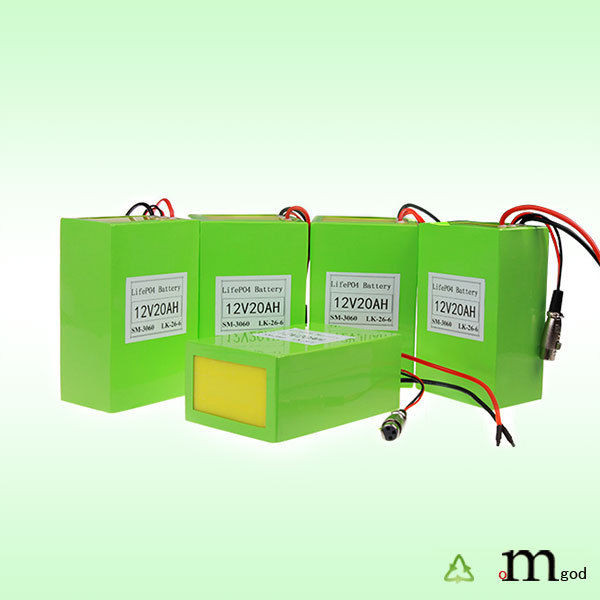

Element: lifepo4 26700 3300mah
Pack Configuration: 4S6P
Nominal pack voltage: 12V
Nominal pack capacity: 20AH
Fully-charged pack voltage: 14.4V (3.6V per cell)
Recommended cut-off voltage: 10V (2.5V per cell)
Minimum voltage: 8V (2.0V per cell)
Net Weight: 2.6KG
Dimension: 115*75*178mm
Continuous Discharge Current : 30A
Burst Discharge Current (A): 60A
Recommended Charge Current : 5A
Work Charge Temp: 0-50°C
Working Disharge Temp: –20°C-50°C
Work Charge Temp: –20°C-50°C
Application: e-bike, e-wheelchair, golf cart, motorcycle, scooter etc.
Cycle life: 1000-1500 cycles to 80% with 100% DOD under normal temperature
- Ціна: 16 590 ₴
