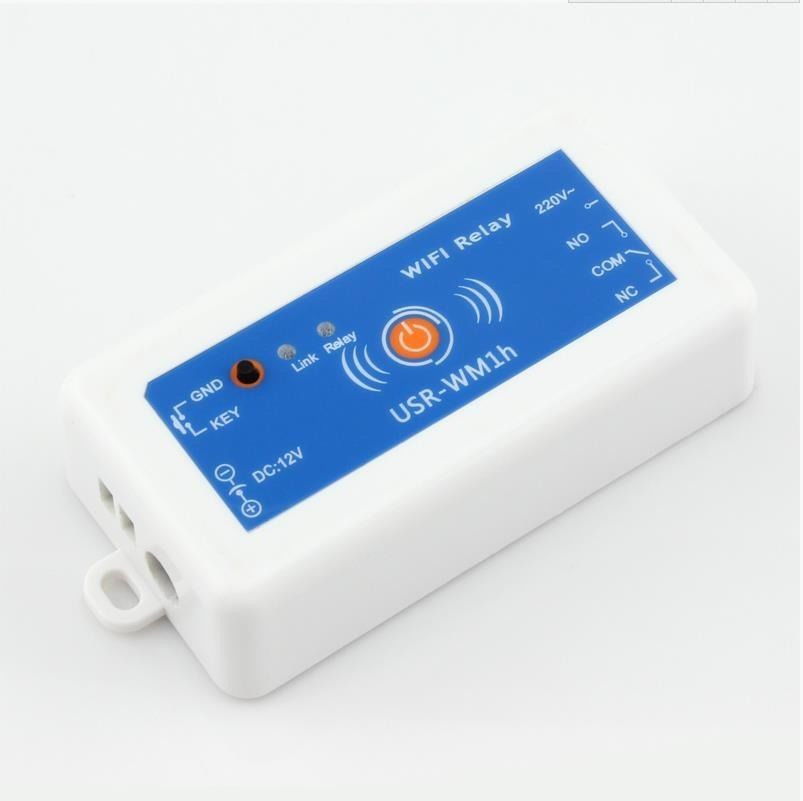

Контролер Channel single Wi-Fi реле, дистанційне керування AC 110/220V
2 058 ₴
Показати оптові ціни- Під замовлення
- Оптом і в роздріб
- Код: 137
Model: USR-WM1h
Function: USR-WM1h is an engineering smart WIFI switch which can realize remote control and LAN switch via LonHand software;
Application: Energy management,Smart Home,industrial automation,agriculture IOT,power control and security control;
LonHand System Advantages:
- Convenient remote control: Only register Lonhand account and tie the account to USR-WH1h;
- Hostless and Dynamic: User only needs to buy USR-WM1h without buying host;
- Overall application network: Ethernet,WIFI and GPRS;
- Five Platform Control: Windows,MAC OS,IOS,Android and Web;
- Support secondary development: User can develop phone or PC program control according to our API;
- Multiple safety verification: Both remote control and LAN control have password verification, which can ensure system security;
More Images
Product Parameters
Class | Parameters |
Relay output | normally open and normally closed |
Mechanical Dimensions | 85*45*23mm(L*W*H) |
Working voltage | AC 110V/220V 60Hz/50Hz or DC12V(WM1h) |
Power consumption | Typical:2W Max: 3W |
Working temperature | -30-85°C |
Preservation environment | temperature : -40-85°C Humidity: 5%-95%RH |
Maximum output voltage / current | AC 250V/10A |
Maximum power output | 2200W |
Packing List | USR-WM1*1 |
Connection Graph
As shown above:
1.USR-WM1h has DC 12V or AC 110~220V power supply;(USR-WM1s:DC 5V or DC 6~24V )
2.Relay has normally open and normally closed contacts.Users can make their option according to their own needs;
3.USR-WM1h has an external key interface, whose function is same to WM1h built-in button. when user is not convenient to use WM1h built-in button, he can use the external key interface. When use WM1h's external key interface, user can not touch the external leads for avoiding the risk of electric shock!
Control Software
Phone software: Support IOS and Android
PC software : Support Windows and MAC OS
Cooperation Ways
1.DIY users:
Install USR-WM1h in ceiling lamp,door lock and distribution box; Use LonHand software to realize smart home control;
2.Project businessmen:
USR-WM1h can be applied to any projects which need control switch,including Barrier control,shutter door control,energy management,industrial automation control and power control;
3.Manufacturers:
Manufacturers can embed WM1h core modules into their products like ceiling lamp, electric curtain,building host and small appliances, and then use LonHand software to realize smart home control;
User Manual
- [USR-WM1] Quick Start EN | 2014-08-26 (download135 times) | download
- [USR-VCOM] Setup Software User Manual V3.5.2 | 2013-10-08 (download1453 times) | download
- [USR LonHand Setup Software] User Manual V1.0 | 2014-06-24 (download487 times) | download
- [USR-WM1] User Manual V1.3.1 | 2014-07-09 (download265 times) | download
- Ціна: 2 058 ₴
