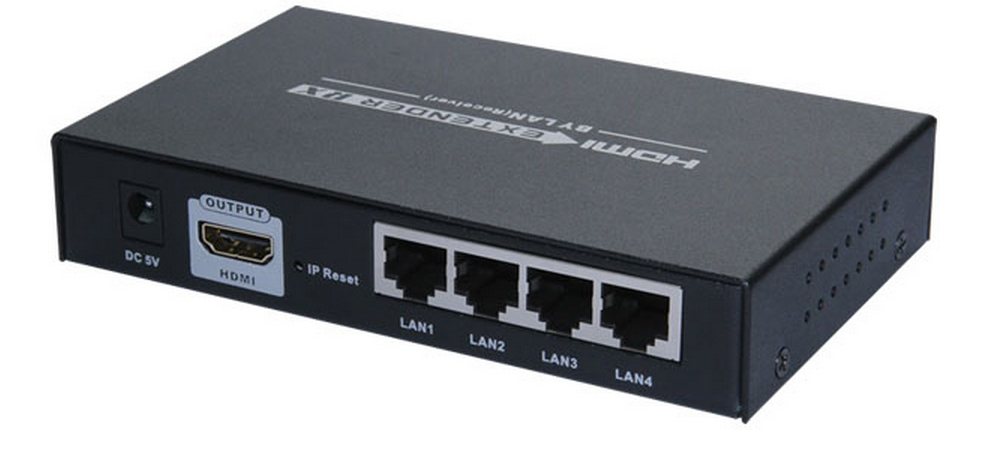

HDMI-передавач до 120 м по крученій парі HDMI Extender LK374 over single CAT5e/6

HDMI Extender over single CAT5e/6 can support the transmission up to 120m and Router fused together. It can be worked as HDMI extender and Router.

Features

* Input /Output:1x HDMI,1x LAN,
   LAN1-LAN4 in TX: they can be connected  4pcs Receivers with network signal as output.
   LAN1-LAN4 in RX: Any of the LAN port as network signal input,the others 3pcs LAN ports can be connected to cascade more receivers with network signal as output.
* Standard TCP/IP,it is with good compatibilty of network equipment and good for network transmission and extension.
* Supports Ethernet bandwidth:100m
* HDCP compliant; Audio sample rate: 44.1KHz,48KHz;
* Video compressing format: M-JPEG.
* Transmission delay: withing 70ms for direct connection with TX and RX.
* Network data transmission rate: up to 80MHz at the highest resolution.
 * Extends by router connection of LAN connection, cable length requirements are as follows:
   CAT5 Maximum 80m between two Devices
   CAT5e Maximum 100m between two Devices
   CAT6 Maximum 120m between two Devices
